New Daylite
Highly transparent polyester fabric, 25 db attenuation (99.7% shielding effectiveness)
Our top selling fabric for workspaces due to its high transparency.
NEW-DAYLITE is a highly-transparent polyester fabric for the protection against high-frequency (HF) radiation.
Price per running metre.

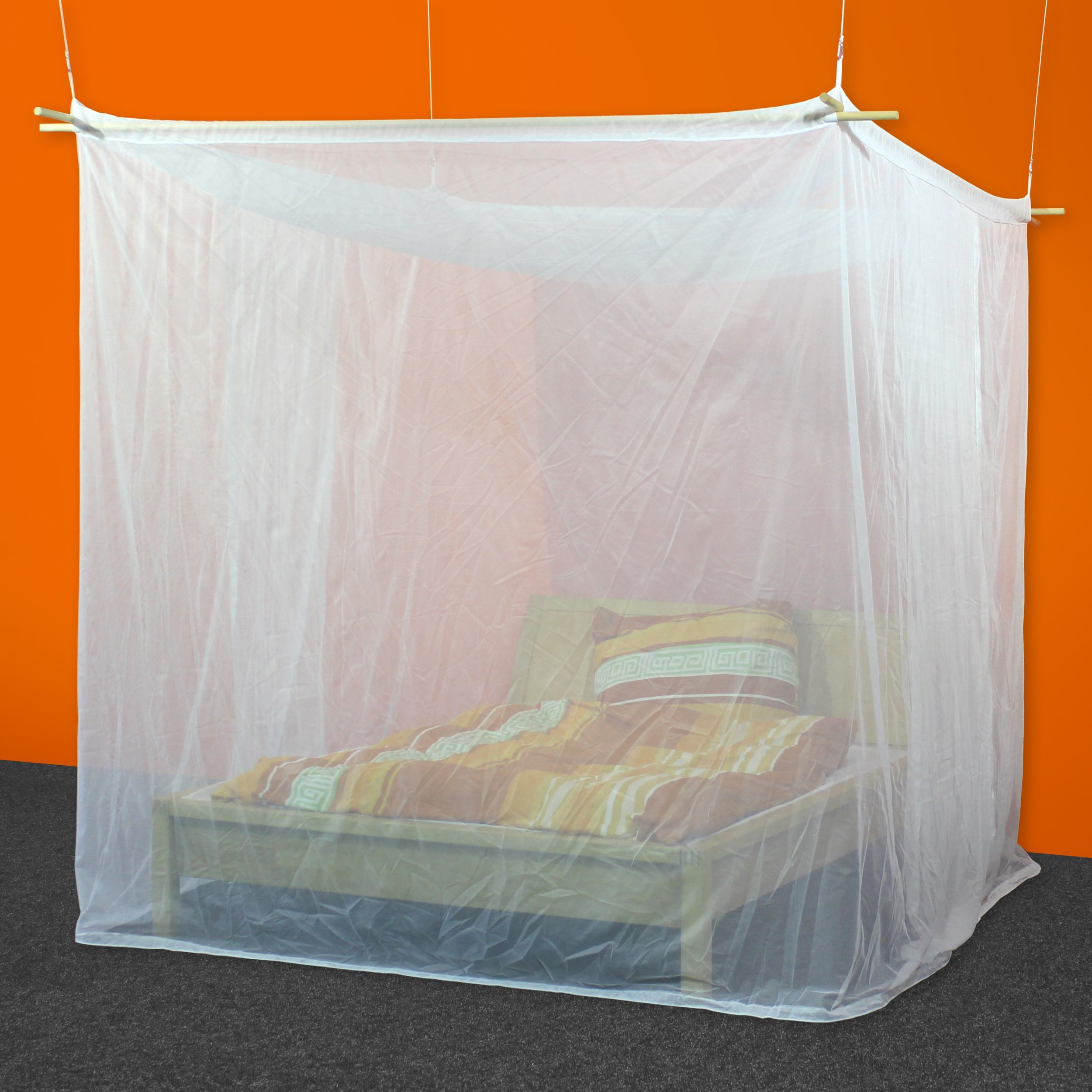

Typical application as net- curtain or to sew a bed canopy.
Very high transparency
Crease resistant polyester
Excellent cost/performance ratio
Textile characteristics: Washable, easy to iron
Width 2.60 m
Technical data
Width: 260 cm, +/- 2 cm
Length: Available by the meter
Attenuation: 25 dB at 1 GHz
Color: White
Raw materials: 78 % polyester (Trevira), 21 % copper, 1 % silver
Weight: 65 g/m².
Dimension stability: +/- 1 %
Certificates: Oeko-Tex 100 and 1000
Grounding
Cannot be grounded. Low-frequency electrical fields (LF) must be reduced by additional procedures. We recommend to shield this fields or to switch it off with a demand switch.
Shielding attenuation
The shielding attenuation is regularly tested in our own laboratory or by Professor Dipl.Ing. Pauli at the University of the German Federal Armed Forces in Munich due to the standards ASTM D4935-10 and/or IEEE-STD-299-2006. The line in the diagram stands for the radial direction of polarisation (both directions, horizontal/vertical) and indicates the attenuation achievable in practice. You find the expert report above.
About Swiss Shield®
This fabric is manufactured by Swiss Shield® in Switzerland. The secret of its shielding effectiveness is a worldwide unique, patented, ultra-thin high-tech yarn. We at YSHIELD particularly value the high quality of the fabrics (haptics, slip resistance, washing resistance). It is not for nothing that we are the world´s largest supplier of Swiss Shield®!
